Walk-Through Metal Detector Accessories

Walk-Through Metal Detector Accessories

Walk-Through Metal Detector Accessories

How To Buy
Software
Caster Sets
Battery Modules
Networking
Stability
Test Pieces
Misc. Accessories

Garrett Quick-Q Software Package
Using Quick-Q software. Alarm on guns, but allowing phones to pass.

先进的安全Scanning Technology

Garrett is the industry leader with superior pinpoint detection technology and unmatched discrimination features. The Quick-Q™ technology sets the standard for today’s need to provide quicker venue access into stadiums, arenas, outdoor events, convention centers and concert halls. This technology has the effectiveness of moving high volumes of patrons through events by reducing line queues and large crowds outside the venue.

When used with Garrett’s enhanced walk-through metal detectors,the Quick-Q™ technology does not require the divestment of cell phones or other small metallic items.This should reduce the number of items divested as fans are screened and improve ingress through-put rates.





Key Features

  • Our dual-panel scanning technologyoffers more accurate detection and discrimination, left-center-right, head-to-toe
  • Quick-Q technologymeans we quickly speed you through the scanning process and alleviate line queues
  • Crowd reductionoutside of each venue
  • Fewer false alarms
  • Faster lines
  • Industry leading technology
  • This software package does not impact Safety Act certifications or submissions


Part No. 1628500 for use with GarrettPD 6500ionly


DownloadQuick-Qbrochure(PDF)

Explore

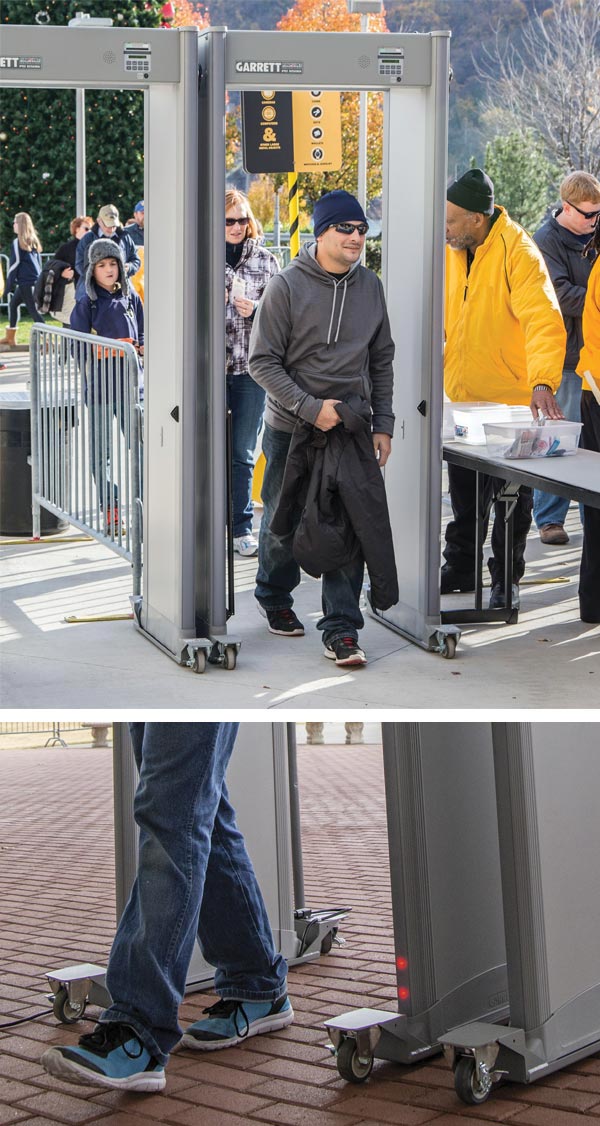

Walk-Through Caster Sets
Includes two (2) rigid locking casters and two (2) swivel locking casters.

  • Ideal for schools, special events, and stadium use.
    Allows full mobility ofPD 6500iwalk-throughs by one person. No Lifting required. Move the detectors to a secure location when not in use and provide an unimpeded exit at the close of an event.
  • Extreme stability combined with portability.
    Two fixed casters with locking devices provides stable detector operation, while two swivel casters with locking devices provide maneuverability. The assembly can be permanently attached to walkthrough’s base.
  • All terrain environment design.
    3-inch wheels allow movement over any hard surfaces. Durable, powder coated steel allows use in all types of environmental conditions. For wind speeds up to 20 mph (32 kph). Available with swivels on either 2 or 4 wheels.


Shipping weight:21 lbs (9.5 kg)
Shipping size:40 1/4" x 8 5/8" x 5"

Walkthrough with casters will roll through doors more than 89" in height without having to tilt the unit.


Part No. 1169101 for use with GarrettPD 6500iandMulti Zone (MZ 6100).

G.S.A. Contract Holder

Battery Modules
These optional battery modules are field-installable assemblies. While recharging, a monitoring circuit allows the batteries to charge in minimal time and then switches to trickle charge to ensure maximum charge without battery damage. The charge status is indicated on the LCD of the Garrett walk-through detector’s control panel and an alarm warns the operator when batteries are low.

PDi Batteries

Lithium Battery Modules
PD 6500iBattery Module, lithium ion
  • Recommended for portable applications where battery is the primary power source.
  • Recommended for high usage application up to 2000 charge cycles.
  • Includes red status light, indicating whether battery is in the process of charging or is fully charged.
  • Includes a quick change bracket for fast battery replacement. Requires a 3/8" wrench.
  • Typical ten (10) hours battery operation per full charge.
Part No. 2225420 for use with GarrettPD 6500ionly.

G.S.A. Contract Holder
Gel Cell Battery Modules
PD 6500iBattery Module, gel cell
  • Recommended for use as an emergency battery backup source, where life cycle is limited (200 to 400 cycles).
  • 14 A-Hr Battery provides approximate 10 hours battery operation per full charge.
Part No. 2225410 for use with GarrettPD 6500ionly.

NOTE: When equipping older walk-through detector units with this battery module, please check with the Garrett factory to acquire the proper software revision that may be required to provide accurate charge indication.

G.S.A. Contract Holder

MZ Batteries

Lithium Battery Modules
Multi Zone (MZ 6100)锂电池模块,1.5 hr
  • Up to one (1) hour of operation.
Part No. 1171300 for use with GarrettMulti Zone (MZ 6100)only.

G.S.A. Contract Holder

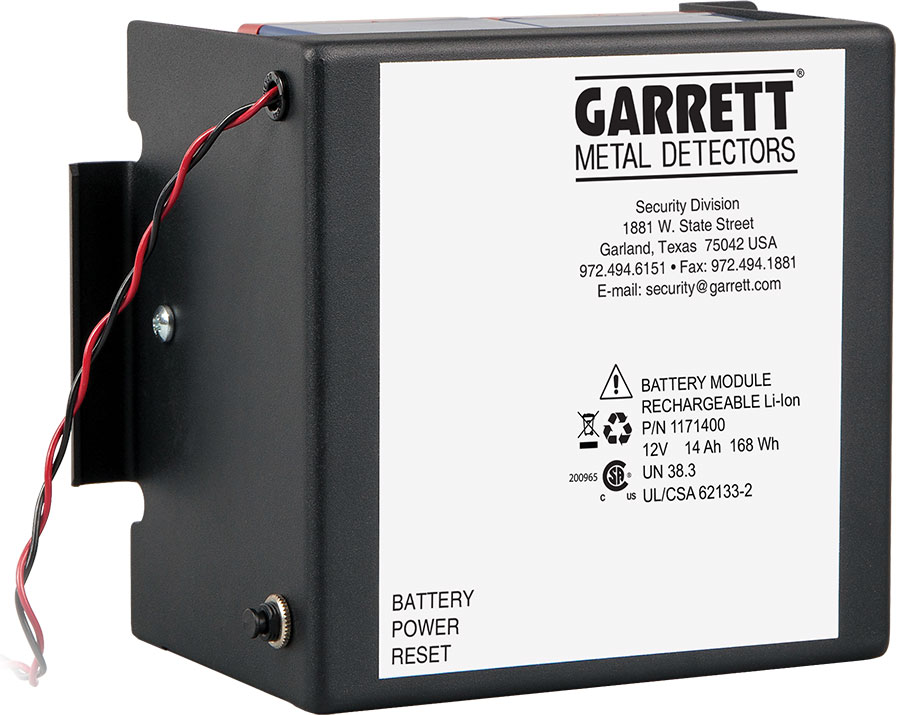

Multi Zone (MZ 6100)Battery Module, lithium ion, 14 A-Hr
  • Recommended for portable applications where battery is the primary power source.
  • Recommended for high usage application up to 2000 charge cycles.
  • Includes a quick change bracket for fast battery replacement. Requires a 3/8" wrench.
  • Typical ten (10) hours battery operation per full charge.
Part No. 1171400 for use with GarrettMulti Zone (MZ 6100)only.

G.S.A. Contract Holder

Networking / Monitoring Accessories
iC Module
The iC Module allows users to communicate to a walk-through metal detector with a laptop or desktop PC through the network either wired or wirelessly. It allows control, real time monitoring and diagnostics from a remote location. The internal memory records all changes to settings and passenger traffic and alarm history for analytical evaluation.
  • Gain real-time access to all walk-through detectors on your network.
  • Utilize group management function to organize multiple walk-throughs by location and name (ex. North Entrance: WT1, WT2, etc.)
  • Adjust settings such as programs or base sensitivity for multiple walk-through detectors all at one time using the group management function.
  • Analyze security checkpoint alarm rates, patron counts and other diagnostic statistics.
  • Check settings and diagnose issues with detectors on your network.
Part No. 1171600 for use with the GarrettPD 6500iorMulti Zone (MZ 6100).

G.S.A. Contract Holder
Garrett Wireless Sync SM 100
  • For use in operating multiple GarrettPD 6500iwalkthroughs.
Part No. 1168800 for use with GarrettPD 6500ionly.

G.S.A. Contract Holder
Relay Module
Provides an isolated relay contact to control lights, doors, equipment. Internal dip switches provide 4 operating modes
  • Activate on alarm
  • Activate on passage of each patron
  • Activate on alarm, release on non-alarm
  • Activate on non-alarm for 5 seconds
Part No. 1171200 for use with GarrettPD 6500iorMulti Zone (MZ 6100).

G.S.A. Contract Holder
PD 6500iDESKTOP REMOTE CONSOLE WITH ZONE INDICATION
For remote operation of the detector
  • Includes 50-foot cable. (optional lengths available)
Part No. 2266400 for use with GarrettPD 6500ionly.

G.S.A. Contract Holder
Multi Zone (MZ 6100)DESKTOP REMOTE CONSOLE WITH ZONE INDICATION
For remote operation of the detector
  • Includes 50-foot cable. (optional lengths available)
Part No. 1171100 for use with GarrettMulti Zone (MZ 6100)only.

G.S.A. Contract Holder
PD 6500iRemote Control
Part No. 1169400 for use with GarrettPD 6500ionly.

G.S.A. Contract Holder
Multi Zone (MZ 6100)IR Remote Control
Part No. 1169500 for use with GarrettMulti Zone (MZ 6100)only.

G.S.A. Contract Holder
Zone Indicator Set, Panel B,MZ 6100
Provides pacing light and zone indicators on entry and exit sides of both panels. Factory installation recommended.

Part No. 1171700 for use with GarrettMZ 6100only.

G.S.A. Contract Holder

Mobility / Stability Accessories
稳定剂基础
2 included.

Part No. 1603901 for use with GarrettPD 6500iorMulti Zone (MZ 6100).

G.S.A. Contract Holder
Adhesive Floor Mount Kit
2 included.

Part No. 1604101 for use with GarrettPD 6500iandMulti Zone (MZ 6100).

G.S.A. Contract Holder
Transportation Braces
Provides a collapsible solution that supports the walk-through metal detector during transportation.

Part No. 1169200 for use with 30" standard Garrett walk-throughs.

G.S.A. Contract Holder


Part No. 1169228 for use with 28" standard Garrett walk-throughs.

Part No. 1169232 for use with 32" standard Garrett walk-throughs.

G.S.A. Contract Holder

Security Test Pieces
Operational Test Piece (OTP)
Designed to FAA 3-gun test requirements.

Part No. 1600600 can be used with all Garrett model detectors.

G.S.A. Contract Holder
Flat Test Piece (FTP)
Designed to represent a small knife or box cutter.

Part No. 1620570 can be used with all Garrett model detectors.

G.S.A. Contract Holder

Cords / Cables / Misc. Accessories
5 ft. Charging Cord
Allows charging multiple walkthroughs from a single power source.

Part No. 9436900 can be used with all Garrett model detectors.
10英尺,跳线
Allows multiple walk-through units to be linked to the same power source when operated in close proximity.

Part No. 9431900 can be used with all Garrett model detectors.
Cable Feedthrough Kit
Allows waterproof connection of power cord through the top of a detection head.

Part No. 1605300 can be used with all Garrett model detectors.
Cover Support
Use with or without Garrett Environmental Cover (Part No. 1627030). Provides extra rain protection when secured to the top of aPD 6500iwalk-through detector or when zipped into the Environmental Cover.

Part No. 9884900 for use with GarrettPD 6500ionly.
Environmental Cover, Soft
High quality UV-resistant, anti-mildew nylon cover. Protects walkthrough electronics from heavy rain and dust. Clearview window panels over touchpads, optics, and zone indicators.

Part No. 1627030 for use with standard 30" width GarrettPD 6500ionly.

Part No. 1627032 for use with 32" width GarrettPD 6500ionly.
6" Pocket Item Container
的位置啊f pocket items prior to screening.

Part No. 1601200 for use with all Garrett model detectors.
Speed Assembly Kit
Quick screws with knurled hand knobs for easier hand tightening. Comes with 8 screws.

Eliminates the need for tools when assembling and disassembling a walk-through.


Part No. 1611100 for use with GarrettPD 6500iorMulti Zone (MZ 6100)
Divesting Table
60" Length
18" Width
29.5" Height

Part No. 1628300
Garrett Security Screening Floor Mat

Size: 2’ x 3’

Expedite your checkpoint:Screening mat indicates the proper foot location/stance for each patron while screening procedures are performed.

抗滑:Commercial grade nylon dye fabric with washable rubber backing.


Part No. 1619500

Garrett Walkthrough Storage Cover

Designed to protect GarrettPD 6500i,Multi Zone (MZ 6100), andSmartScanwalk-through metal detectors

Protect your investment:Protect your walkthrough electronics from heavy rain and dust with this light weight and durable water repellent black polyester cover. Includes Urethane coated fabric with black tricot backing to avoid scratches.

One size fits all:Cover is flexible enough to fit over both 30" and 32" GarrettPD 6500iandMZ 6100walkthrough detectors.

Note: For winds speeds up to 25 mph (40 kph)

Part No. 1628800
